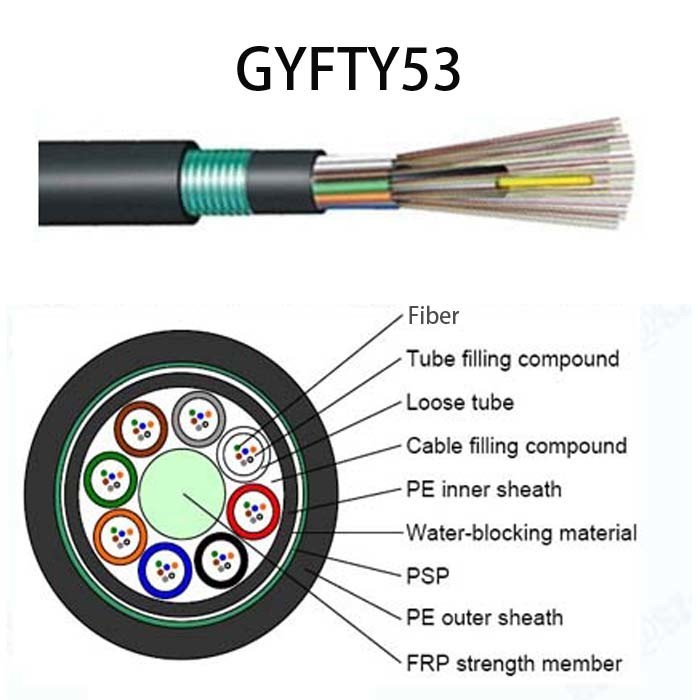

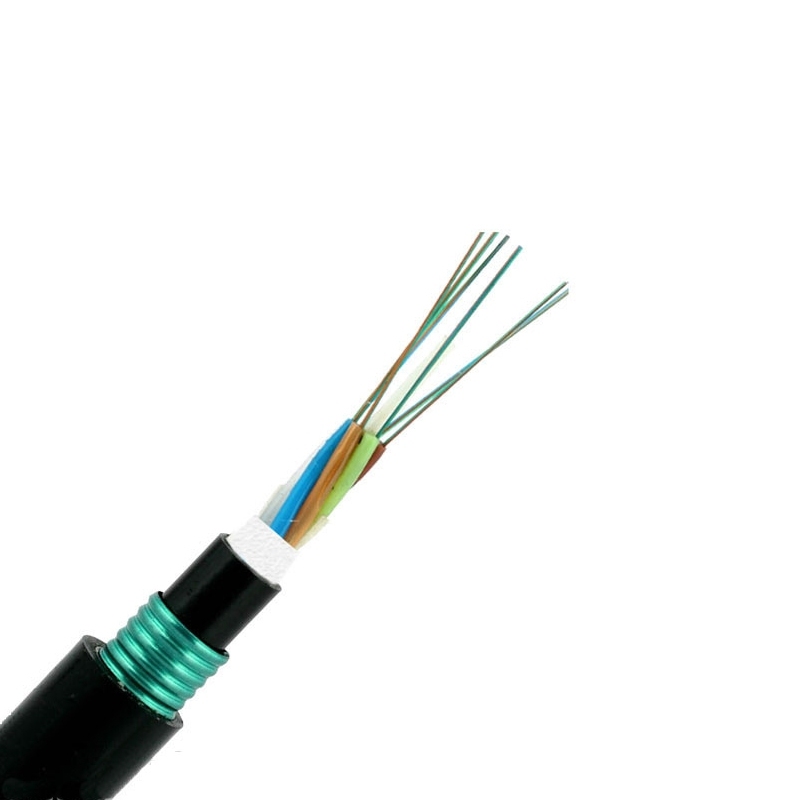

Features
•Good mechanical and temperature performance
•Low attenuation and dispersion
•High strength loose tube that is hydrolysis resistant
•Special tube filling compound ensure a critical protection of fiber
•FRP strength member ensures good anti-electromagnetic interference
•Good water-blocking tape prevent the sinking vertically
•Double sheath design enhances the crushing performance, good moisture-resistance and ultra violet radiation resistant
| Specifications |
|
|
|
|
|
|
| Cable Type |
Single-Armored Outdoor |
Fiber Count |
12-288 Fibers |
|
|
| Construction |
Stranded Loose Tube |
Fiber Type |
Multi-mode 62.5/125 OM1 |
|
|
| Inner/Outer Sheath |
PE/Black |
Armor Layer |
Corrugated steel tape |
|
|
| Cable Diameter |
12.00mm-17.30mm |
Weight |
170kg/km-328kg/km |
|
|
| Central Strength Member |
FRP |
Application |
Buried and Duct |
|
|
| Tensile Strength |
3000/1000N |
Crush Load |
300/1000 (N/100mm) |
|
|
| (long/short term) |
(long/short term) |
|
|
| Bending Radius |
10D/20D(mm) |
Operating/Storage Temperature |
-40 to +60°C |
|
|
| (long/short term) |
|
|
|
|
|
|
|
|
|
|
| Requirement for Order |
|
| (1) Fiber sort: Single mode:G652D,G657A1, G657A2, Multi mode:OM1,OM2,OM3,OM4. |
|
| (2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc. |
|
| (3) Jacket material: PE、LSZH ( can be required). |
|
| (4) The fiber and tube color: according to stranded color, can be required. |
|
| (5) Length of cable: generally is 2KM/drum, can be required. |
|
| (6) Other requirement: can be negotiated. |
|
|
|
|
|
|
|
|
|
| Fiber optical Characteristic (after cable) |
| Fiber type |
Attenuation |
Bandwidth |
Effective modal bandwidth |
10 Gb/s Link Length |
| Conditions |
1310/1550nm |
850/1300nm |
850/ |
850nm |
850nm |
| Typical |
Maximum |
Typical |
Maximum |
1300nm |
| Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHz.km |
MHz.km |
m |
| G652D |
0.5/0.4 |
0.6/0.5 |
/ |
/ |
/ |
/ |
/ |
| G657A1 |
0.5/0.4 |
0.6/0.5 |
/ |
/ |
/ |
/ |
/ |
| G657A2 |
0.4/0.3 |
0.5/0.4 |
/ |
/ |
/ |
/ |
/ |
| G657B3 |
0.5/0.4 |
0.6/0.5 |
/ |
/ |
/ |
/ |
/ |
| 62.5/125 |
/ |
/ |
3.5/1.0 |
3.5/1.5 |
≥160/500 |
/ |
/ |
| 50/125/ |
/ |
/ |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
/ |
/ |
| OM1 |
| 50/125/ |
/ |
/ |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
/ |
/ |
| OM2 |
| OM3-150 |
/ |
/ |
3.0/1.0 |
3.5/1.5 |
≥700/500 |
≥950 |
150 |
| OM3-300 |
/ |
/ |
2.5/0.8 |
3.0/1.0 |
≥1500/500 |
≥2000 |
300 |
| OM4-550 |
/ |
/ |
2.5/0.8 |
3.0/1.0 |
≥3500/500 |
≥4700 |
550 |
