| Technical Parameter |
|
| Item |
Technology parameter |
|
|
| Cable type |
Drop Cable |
|
|
| Cable Count |
1 2 4 6 8 12 |
|
|
| Fiber color |
Blue, Orange, Green, Brown, Grey, White,Red, Black,Yellow, Purple, Pink, Aqua |
|
|
| Fiber type |
9/125 (G657A2) |
|
|
| Sheath color |
Black and white |
|
|
| Sheath material |
LSZH |
|
|
| Cable dimension (mm) |
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1) |
|
|
| Cable weight (Kg/km) |
20 |
|
|
| Min. bending radius (mm) |
10 (Static) 25 (Static) 30 (Static) 60 (Static) |
|
|
| Attenuation (dB/km) |
0.4 at 1310nm, 0.3 at 1550nm |
|
|
| Short term tensile ( N) |
200; 600 |
|
|
| Crush resistance (N/100mm) |
1000; 2200 |
|
|
| Operation temperature (℃) |
-20~+70 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Characteristics |
|
|
|
|
|
|
| *Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. |
|

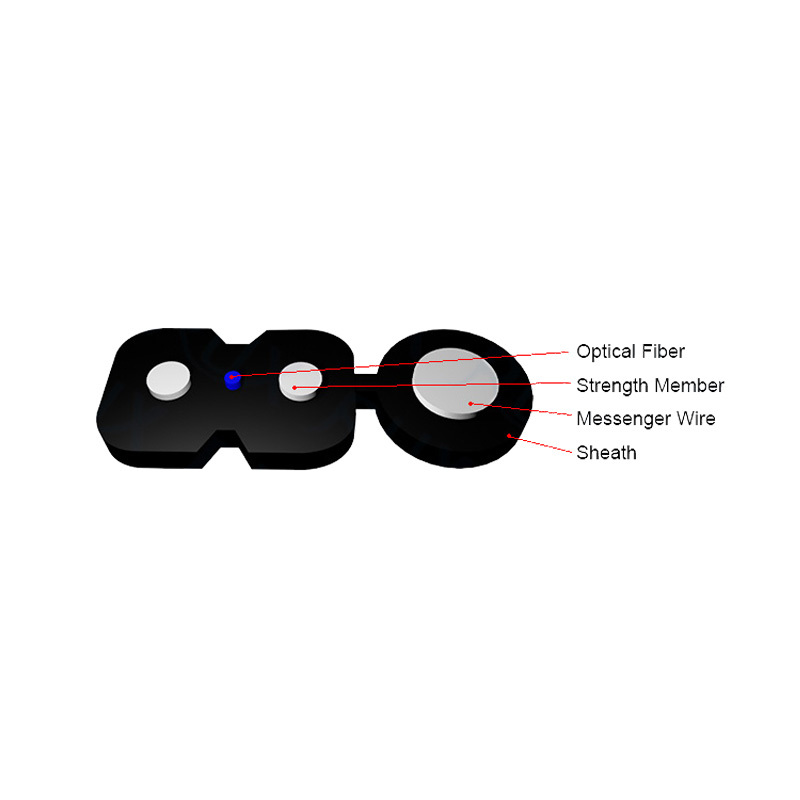

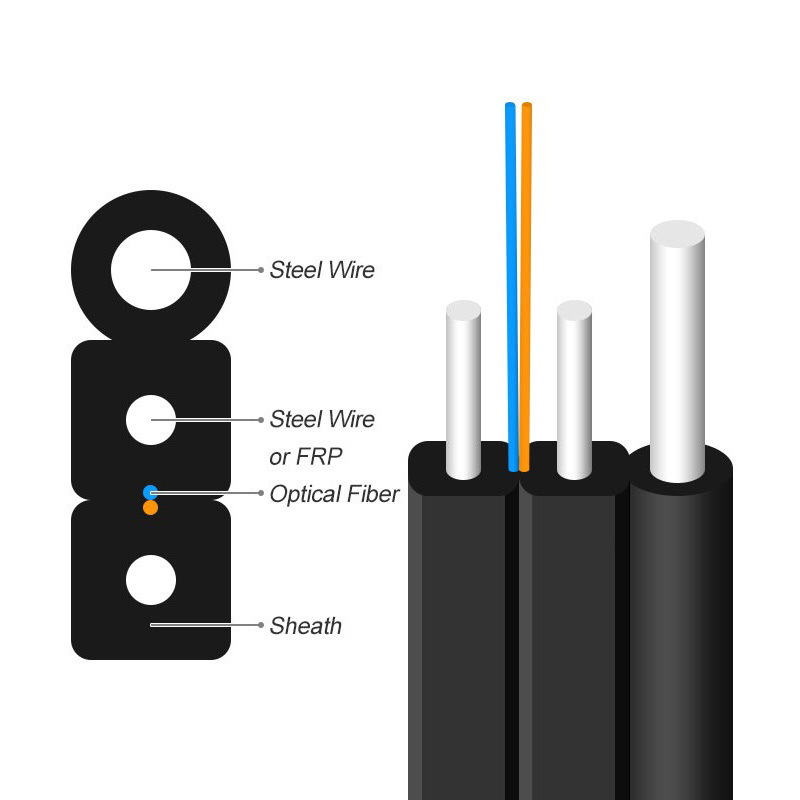

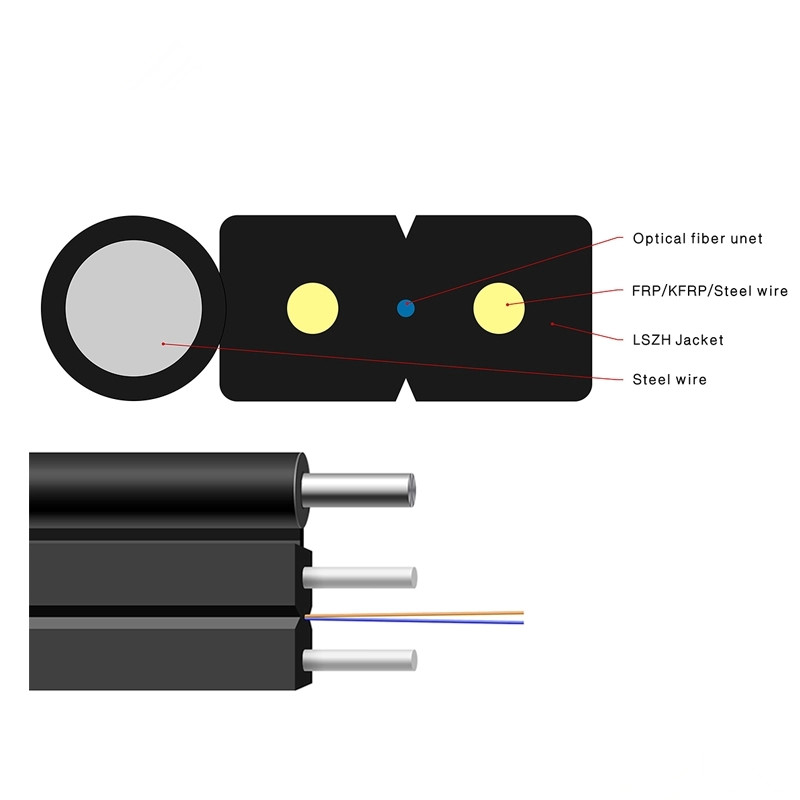

| *Two parallel FRP or Steel wire strength members ensure good performance of crush resistance to protect the fiber. |
| *Single steel wire or massagers as the additional strength member ensures good performance of tensile strength. |
|
| *Simple structure, light weight and high practicability. |
|
| *Novel flute design, easily strip and splice, simplify the installation and maintenance. |
|
| *Low smoke, zero halogen and flame retardant sheath. |
|
