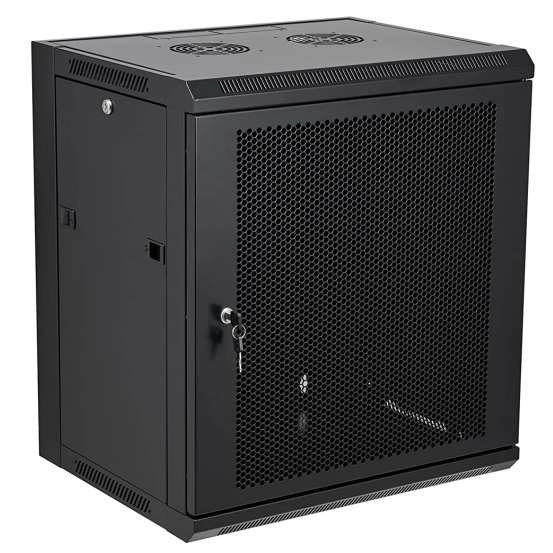

NH-WM(V) Flat Wall Mounted Cabinet

Item No.: 00142
Description
Description

Description
Wall mount, single section
 cabinet is a solution designed to expand networks, installation of cabling and equipment in size 19 inch with max. 60kg. loading capacity. It can be used in networks, server rooms, small and medium businesses. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Appropriate design allows simple, self-assembly. Cabinet is characterized by IP20 degree of protection, opening front door with possibility of rotate to 180° with lock, removable side panels (locks included). The cabinet has cable entry panel on top and bottom cover. This product is made of high grade cold rolled steel. Cabinet structure for self-assembly is in flat pack which facilitates transport.



Features

*Flat-package can save more space

*Big door-opening angle: Front and rear doors can be opened 180 degree

*Hand lock can early to open the door

*Optional doors :There are also optional glass, mesh, and metal doors, which meet for different project requirements.

*Cabinet type: Wall mount

*Body color: Black

*Height: 4-18U

*Loading capacity: max. 60 KG

*Degree of protection: IP20

*Doors type: Temper glass,

*Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI.

*Material: High grade cold rolled steel, powder coated

*Fan mounting slots: Yes, 120mm, 110V or 230V

*Glass thickness: 5.0 mm

*Sheet thickness: vertical mounting rails - 1.50 mm; mounting profile - 1.50 mm; others - 1.00 1.20 mm; top & bottom & side panel - 1.00 mm

*Cable entry panel: Top, Bottom

*Included: Accessory bag, earth kit (pins, grounding cable, nuts and mounting washers), front door lock, two side panels with locks, 12 cage nuts M6.



Specification

Standard Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards.
Compatible with 19” International Standard and Metrical and ETSI standards
Surface finish Degreasing、Pickling、Phosphoric、Cleaning、Power Coated
Material SPCC   quality cold rolled steel
Packaging Assembled Or Flat Packaging
Maximum Static Load 60KG
Color Black   Grey
Warranty 2 Year warranty on cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation.



Standard Accessories list

Frame 1pcs
Front door with Small round lock 1pcs
Rear panel 1pcs
Side door with quick open latch 2pcs
Top and bottom cover 1pcs
Mounting profile 4pcs
L Rail 1pcs
Fan Optional
Fixed Shelf Optional

Customizable size
Model Width(MM) Depth(MM) Height (U)
NH-WM(V)-6404 600 450 4
NH-WM(V)-6604 600
NH-WM(V)-6406 600 450 6
NH-WM(V)-6606 600
NH-WM(V)-6409 600 450 9
NH-WM(V)-6609 600
NH-WM(V)-6412 600 450 12
NH-WM(V)-6612 600
NH-WM(V)-6415 600 450 15
NH-WM(V)-6615 600
NH-WM(V)-6418 600 450 18
NH-WM(V)-6618 600
