Description

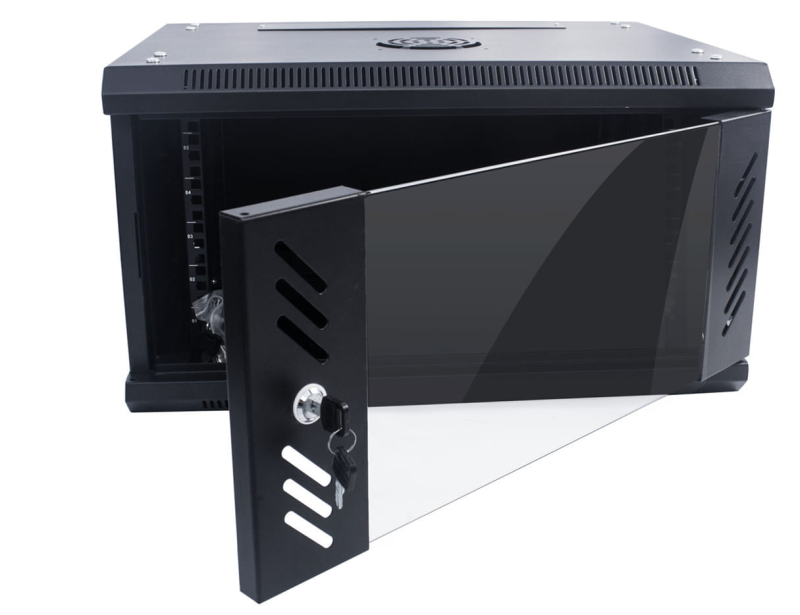

Wall mount, single section cabinet is a solution designed to expand networks, installation of cabling and equipment in size 19 inch with max. 60kg. loading capacity. It can be used in networks, server rooms, small and medium businesses. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Appropriate design allows simple, self-assembly. Cabinet is characterized by IP20 degree of protection, opening front door with possibility of rotate to 180° with lock, removable side panels (locks included). The cabinet has cable entry panel on top and bottom cover. This product is made of high grade cold rolled steel. Cabinet structure for self-assembly is in flat pack which facilitates transport.
Features
*Flat-package can save more space
*Big door-opening angle: Front and rear doors can be opened 180 degree
*Hand lock can early to open the door
*Optional doors :There are also optional glass, mesh, and metal doors, which meet for different project requirements.
*Cabinet type: Wall mount
*Body color: Black
*Height: 4-18U
*Loading capacity: max. 60 KG
*Degree of protection: IP20
*Doors type: Temper glass,
*Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI.
*Material: High grade cold rolled steel, powder coated
*Fan mounting slots: Yes, 120mm, 110V or 230V
*Glass thickness: 5.0 mm
*Sheet thickness: vertical mounting rails - 1.50 mm; mounting profile - 1.50 mm; others - 1.00 1.20 mm; top & bottom & side panel - 1.00 mm
*Cable entry panel: Top, Bottom
*Included: Accessory bag, earth kit (pins, grounding cable, nuts and mounting washers), front door lock, two side panels with locks, 12 cage nuts M6.
Specification
Standard | Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards. |
Compatible with 19” International Standard and Metrical and ETSI standards | |
Surface finish | Degreasing、Pickling、Phosphoric、Cleaning、Power Coated |
Material | SPCC quality cold rolled steel |
Packaging | Assembled Or Flat Packaging |
Maximum Static Load | 60KG |
Color | Black Grey |
Warranty | 2 Year warranty on cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation. |
Frame | 1pcs |
Front door with Small round lock | 1pcs |
Rear panel | 1pcs |
Side door with quick open latch | 2pcs |
Top and bottom cover | 1pcs |
Mounting profile | 4pcs |
L Rail | 1pcs |
Fan | Optional |
Fixed Shelf | Optional |
Model | Width(MM) | Depth(MM) | Height (U) |
NH-WM(H)-6404 | 600 | 450 | 4 |
NH-WM(H)-6604 | 600 | ||
NH-WM(H)-6406 | 600 | 450 | 6 |
NH-WM(H)-6606 | 600 | ||
NH-WM(H)-6409 | 600 | 450 | 9 |
NH-WM(H)-6609 | 600 | ||
NH-WM(H)-6412 | 600 | 450 | 12 |
NH-WM(H)-6612 | 600 | ||
NH-WM(H)-6415 | 600 | 450 | 15 |
NH-WM(H)-6615 | 600 | ||
NH-WM(H)-6418 | 600 | 450 | 18 |
NH-WM(H)-6618 | 600 |
