Description

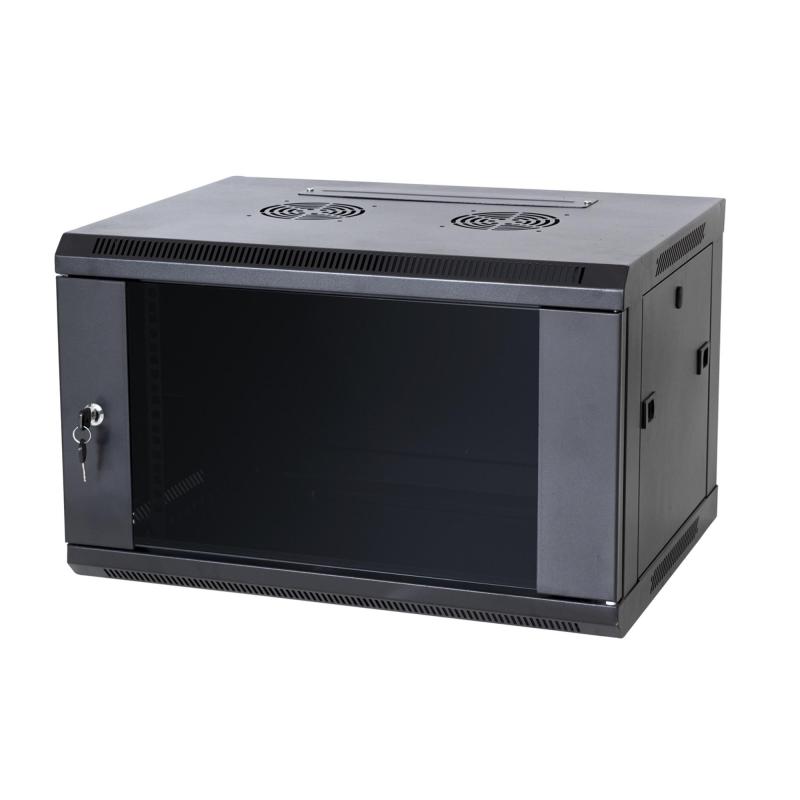

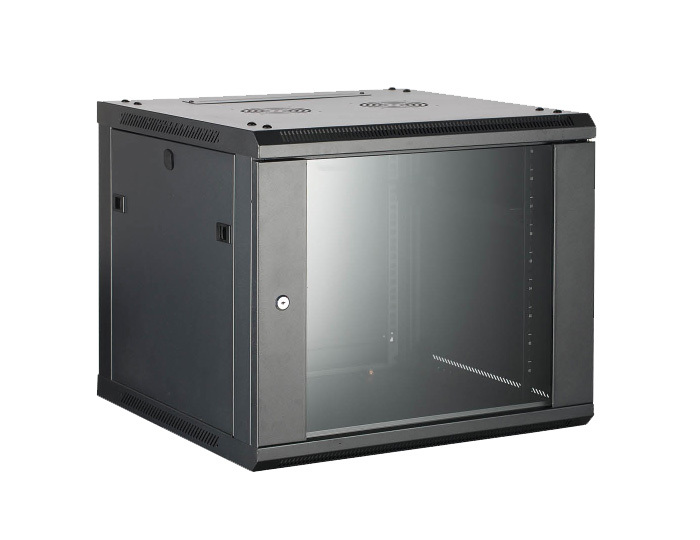

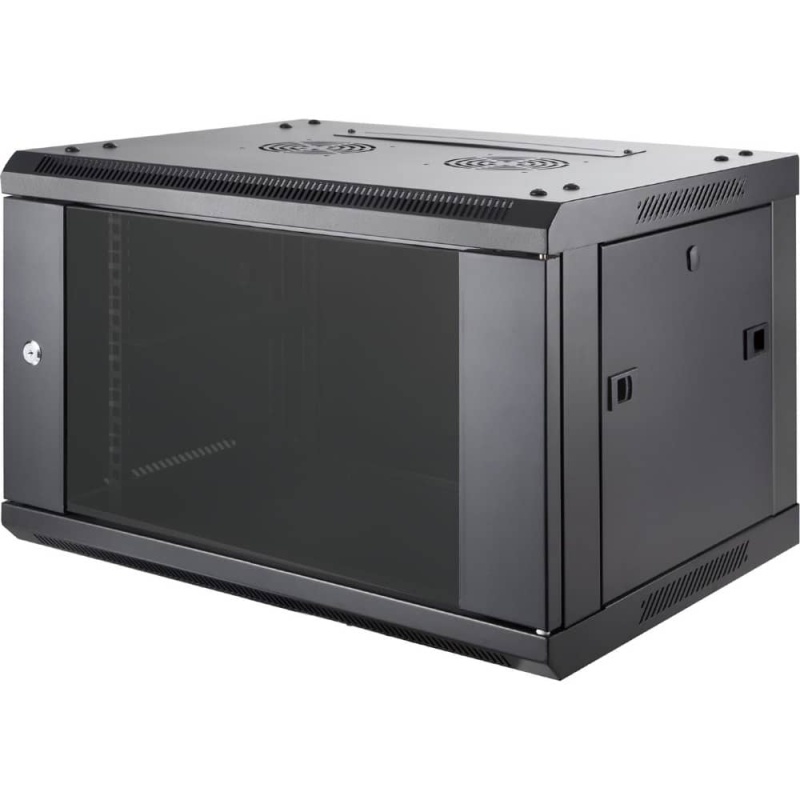

Wall mounted single section cabinet is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 60kg. loading capacity. It can be used in networks, server rooms, small and medium businesses. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Appropriate design allows simple, self-assembly. Cabinet is characterized by IP20 degree of protection, opening front door with possibility of rotate to 180° with lock, removable side panels (locks included). The cabinet has cable entry panel on top and bottom cover. This product is made of high grade cold rolled steel. Cabinet structure for self-assembly is in flat pack which facilitates transport.
Features
*Flat-package can save more space
*Big door-opening angle: Front and rear doors can be opened 180 degree
*Installation of wall-mounted cabinet is convenient. Extremely easy for assembled,it only takes 5 minutes for a skillful person to assemble a whole cabinet.
*Optional doors :There are also optional glass, mesh, and metal doors, which meet for different project requirements.
*Gloss black colour, easy clean surface
*Material: SPCC quality cold rolled steel
*Compatible with 19” International Standard and Metrical and ETSI standards
*Surface Finish: Degrease, acid pickling, rust prevention, par kerizing pure water cleaning and static electricity plastic painting
*Complies with IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 standards
*2 Year Warranty on the cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation.
Specification
Standard | Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards. |
Compatible with 19” International Standard and Metrical and ETSI standards | |
Surface finish | Degreasing、Pickling、Phosphoric、Cleaning、Power Coated |
Material | SPCC quality cold rolled steel |
Packaging | Assembled Or Flat Packaging |
Maximum Static Load | 60KG |
Color | Black Grey |
Warranty | 2 Year warranty on cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation. |
Standard Accessories list
Frame | 1pcs |
Front door with Small round lock | 1pcs |
Rear panel | 1pcs |
Side door with quick open latch | 2pcs |
Top and bottom cover | 1pcs |
Mounting profile | 4pcs |
L Rail | 1pcs |
Fan | Optional |
Fixed Shelf | Optional |
Customizable size
Model | Width(MM) | Depth(MM) | Height (U) |
NH-WM(F)-6404 | 600 | 450 | 4 |
NH-WM(F)-6604 | 600 | ||
NH-WM(F)-6406 | 600 | 450 | 6 |
NH-WM(F)-6606 | 600 | ||
NH-WM(F)-6409 | 600 | 450 | 9 |
NH-WM(F)-6609 | 600 | ||
NH-WM(F)-6412 | 600 | 450 | 12 |
NH-WM(F)-6612 | 600 | ||
NH-WM(F)-6415 | 600 | 450 | 15 |
NH-WM(F)-6615 | 600 | ||
NH-WM(F)-6418 | 600 | 450 | 18 |
NH-WM(F)-6618 | 600 |
