Features
*Optional Doors : Glass Door , Mesh Door , Metal Door .as your request .
*Reliable Structure , Static Loading Capacity : 800KG
*Flat-package can saving more transportation cost .
*800mm Width have Cable management
*Height: 18U, 22U, 27U, 32U, 37U, 42U, 47U
*Reliable 19" international structure, universal type

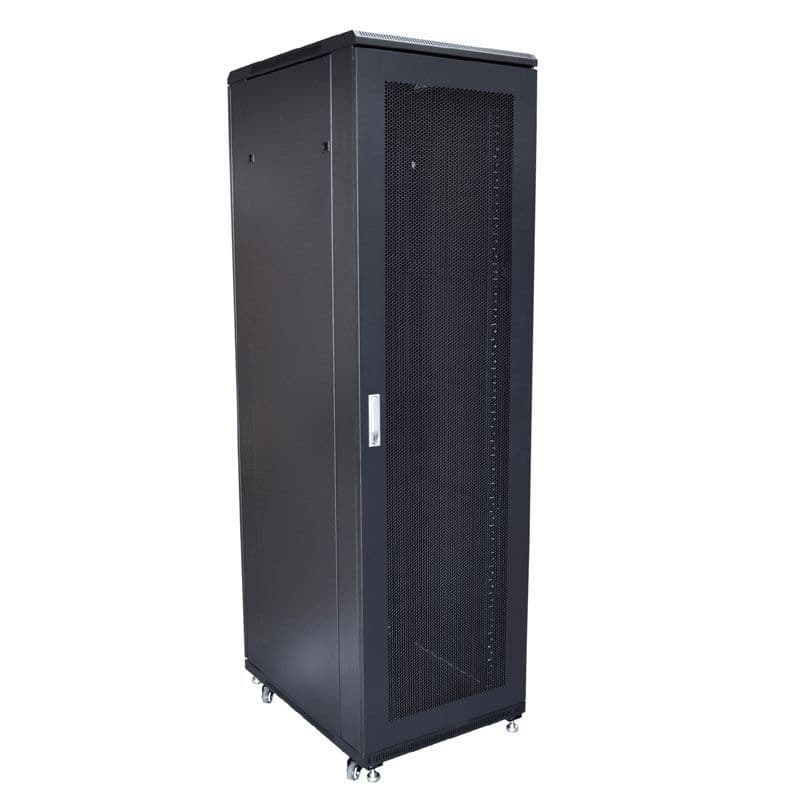

*Front mesh door with spring lock
*Perforated mesh back door with spring lock
*Front and rear door hinges with 130 degrees operation angle
*Swiveling wheels and adjustable feet can be jointly
*Removable side panels with plastic fasteners for easy operation, lock is for options
*Top can install cooling fans, fan size: 120*120*38mm
*Easy to disassemble front/rear/left/right doors enable convenient operation from any side of the rack
*Operation installation of base enables the rack to stay in a fixed position with meeting requirements of data center
*Varies of accessories can be optional.
*Varies specification upon customers' special requirements
*Flat packing methods allows for convenient stocking and end-user delivery,save 60% volume
*Industry standard and material: comply with ANSI/EIA, RS-310-D, IEC2972,DIN 41491: Part1, DIN 41494: PART7, GB/T3047.292 standards and ETSI standard
Specification
| Standard | Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards. |
| Compatible with 19” International Standard and Metrical and ETSI standards | |
| Surface finish | Degreasing、Pickling、Phosphoric、Cleaning、Power Coated |
| Material | SPCC quality cold rolled steel |
| Packaging | Assembled Or Flat Packaging |
| Maximum Static Load | 800KG |
| Color | Black Grey |
| Warranty | 2 Year warranty on cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation. |
Standard Accessories list
| Frame | 2pcs |
| Front door with lock | 1pcs |
| Rear door with lock | 1pcs |
| Side door with quick open latch | 2pcs |
| Top and bottom cover | 1pcs |
| Fan unit | 1set |
| Castors | 4pcs |
| Adjustable feet | 4pcs |
| Mounting Profile | 4pcs |
| Mounting Angle | 4/6pcs |
| Shelf | Optional |
Customizable size
| Model | Width(MM) | Depth(MM) | Height (U) |
| NH-V-6632 | 600 | 600 | 32 |
| NH-V-6832 | 800 | ||
| NH-V-6032 | 1000 | ||
| NH-V-8632 | 800 | 600 | |
| NH-V-8832 | 800 | ||
| NH-V-8032 | 1000 | ||
| NH-V-6637 | 600 | 600 | 37 |
| NH-V-6837 | 800 | ||
| NH-V-6037 | 1000 | ||
| NH-V-8637 | 800 | 600 | |
| NH-V-8837 | 800 | ||
| NH-V-8037 | 1000 | ||
| NH-V-6642 | 600 | 600 | 42 |
| NH-V-6842 | 800 | ||
| NH-V-6042 | 1000 | ||
| NH-V-8642 | 800 | 600 | |
| NH-V-8842 | 800 | ||
| NH-V-8042 | 1000 |
