Features
*Optional Doors : Glass Door , Vented Door , Steel Door .as your request .
*Reliable Structure , Static Loading Capacity : 800KG
*Flat-package can saving more transportation cost .
*800mm Width have Cable management

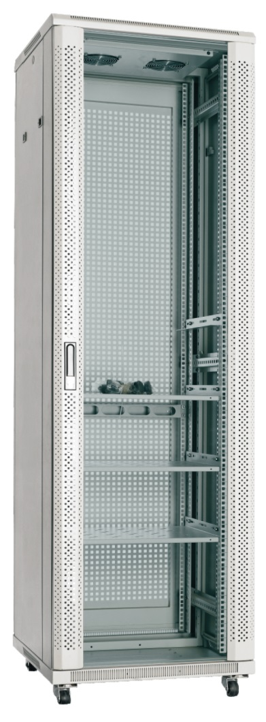

*NH-H is a high performance rack cabinet
*It plays a vital role in the equipment room and office
*Cold rolled steel sheet frame, side door, top and back door, front tempered glass door
*Side door can be locked
*A pair of adjustable columns make it fit for different depth (600/800 and 1000mm) equipment
*19-inch electricity and information system design used for different equipment
*It is applied in the financial, securities, data center, machine room, specially designed for the server, which can provide good performance and stable equipment working environment
*Colors: Black
Specification
| Standard |
Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards. |
| Compatible with 19” International Standard and Metrical and ETSI standards |
| Surface finish |
Degreasing、Pickling、Phosphoric、Cleaning、Power Coated |
| Material |
SPCC quality cold rolled steel |
| Packaging |
Assembled Or Flat Packaging |
| Maximum Static Load |
800KG |
| Color |
Black Grey |
| Warranty |
2 Year warranty on cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation.
|
Standard Accessories list
| Frame |
2pcs |
| Front door with lock |
1pcs |
| Rear door with lock |
1pcs |
| Side door with quick open latch |
2pcs |
| Top and bottom cover |
1pcs |
| Fan unit |
1set |
| Castors |
4pcs |
| Adjustable feet |
4pcs |
| Mounting Profile |
4pcs |
| Mounting Angle |
4/6pcs |
| Shelf |
Optional |
Customizable size
| Model |
Width(MM) |
Depth(MM) |
Height (U) |
| NH-H-6632 |
600 |
600 |
32 |
| NH-H-6832 |
800 |
| NH-H-6032 |
1000 |
| NH-H-8632 |
800 |
600 |
| NH-H-8832 |
800 |
| NH-H-8032 |
1000 |
| NH-H-6637 |
600 |
600 |
37 |
| NH-H-6837 |
800 |
| NH-H-6037 |
1000 |
| NH-H-8637 |
800 |
600 |
| NH-H-8837 |
800 |
| NH-H-8037 |
1000 |
| NH-H-6642 |
600 |
600 |
42 |
| NH-H-6842 |
800 |
| NH-H-6042 |
1000 |
| NH-H-8642 |
800 |
600 |
| NH-H-8842 |
800 |
| NH-H-8042 |
1000 |
