Description

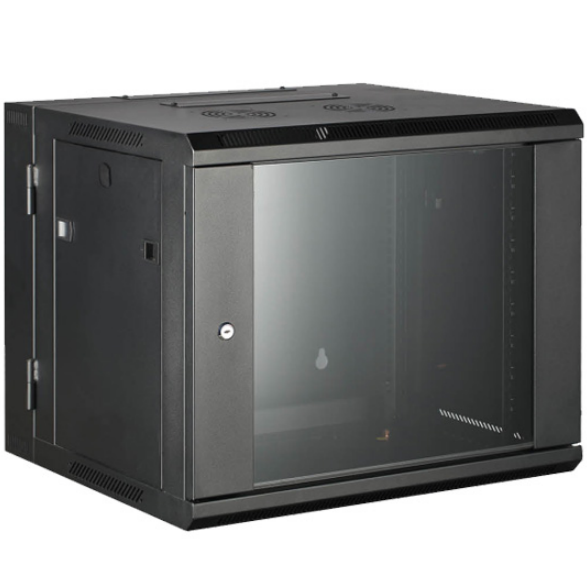

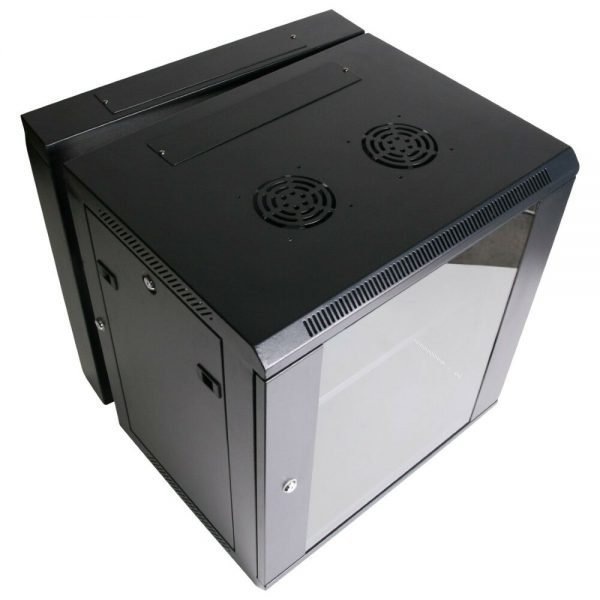

Wall mounted Double section cabinet is a solution designed to expand networks, installation of cabling and equipment in size 19 inch with max. 60kg. loading capacity. It can be used in networks, server rooms, small and medium businesses. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Appropriate design allows simple, self-assembly. Cabinet is characterized by IP20 degree of protection, opening front door with possibility of rotate to 180° with lock, removable side panels (locks included). The cabinet has cable entry panel on top and bottom cover. This product is made of high grade cold rolled steel. Assemble Packing.
Features
*High loading capacity :Fully welded and assembled.reliable structure

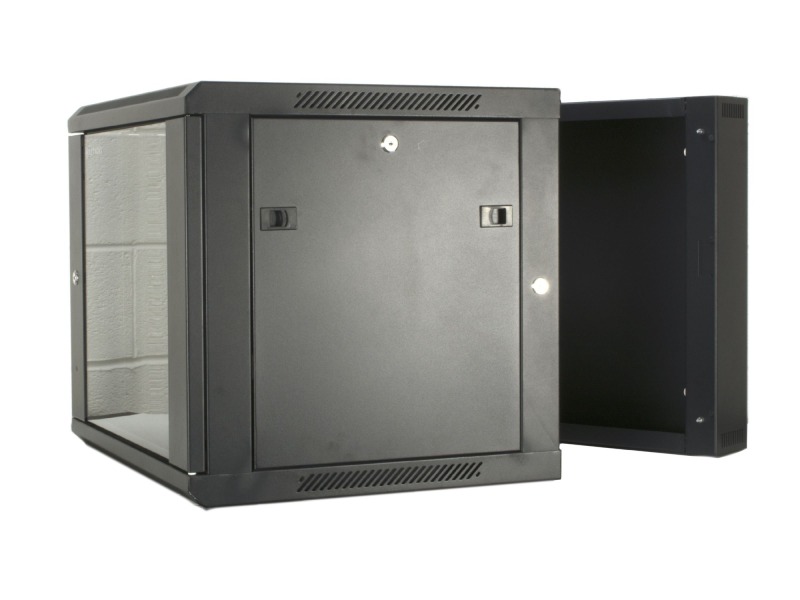

*Double Section: Easy access to equipments and cabling
*Big door-opening angle: Front door can be opened 180 degree, Rear door can be opened 90 degree
*Optional doors :There are also optional glass, mesh, and metal doors, which meet for different project requirements.
*Removable Back mount supplied with left & right hinges
*Removable lockable side panels
*Reversible lockable safety glass front door
*Bonding earth wire installed
*Gloss black colour, easy clean surface
*Max loading: 60kg
*Complies to IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 standards.
*2 Year warranty subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation plus a 1-year Warranty on fans
Specification
Standard | Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491:PART1, DIN41494:PART7, YD 5083-2005, GB/T3047.2-92 standards. |
Compatible with 19” International Standard and Metrical and ETSI standards | |
Surface finish | Degreasing、Pickling、Phosphoric、Cleaning、Power Coated |
Material | SPCC quality cold rolled steel |
Packaging | Assembled |
Maximum Static Load | 60KG |
Color | Black Grey |
Warranty | 2 Year warranty on cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation. |
Standard Accessories list
Frame | 1pcs |
Front door with Small round lock | 1pcs |
Rear panel | 1pcs |
Side door with quick open latch | 2pcs |
Top and bottom cover | 1pcs |
Mounting profile | 4pcs |
L Rail | 1pcs |
Fan | Optional |
Fixed Shelf | Optional |
Customizable size
Model | Width(MM) | Depth(MM) | Height (U) |
NH-DW-6404 | 600 | 450 | 4 |
NH-DW-6604 | 600 | ||
NH-DW-6406 | 600 | 450 | 6 |
NH-DW-6606 | 600 | ||
NH-DW-6409 | 600 | 450 | 9 |
NH-DW-6609 | 600 | ||
NH-DW-6412 | 600 | 450 | 12 |
NH-DW-6612 | 600 | ||
NH-DW-6415 | 600 | 450 | 15 |
NH-DW-6615 | 600 | ||
NH-DW-6418 | 600 | 450 | 18 |
NH-DW-6618 | 600 |
