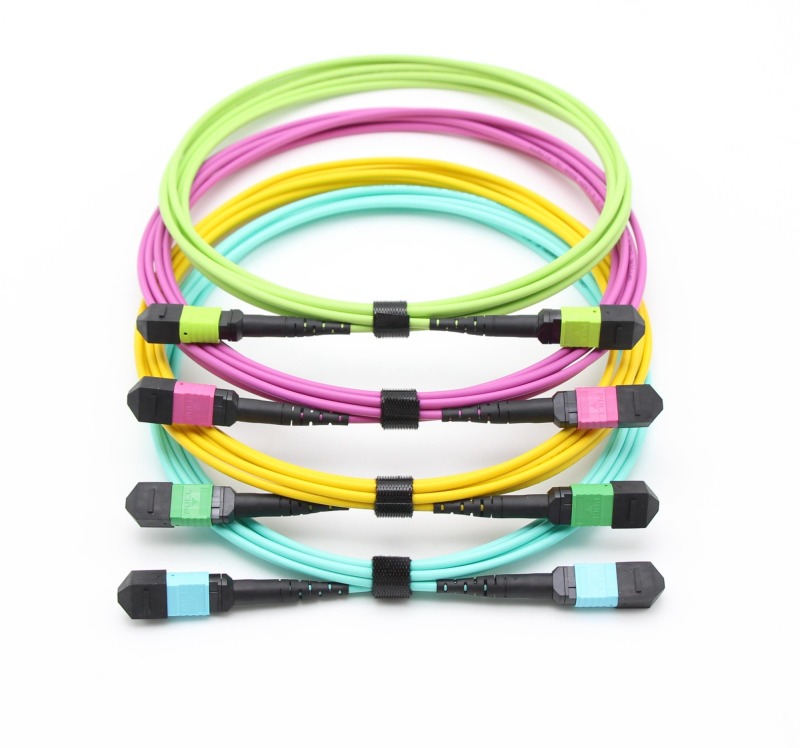

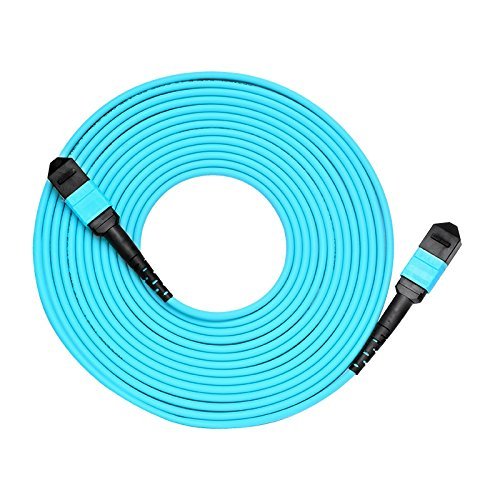

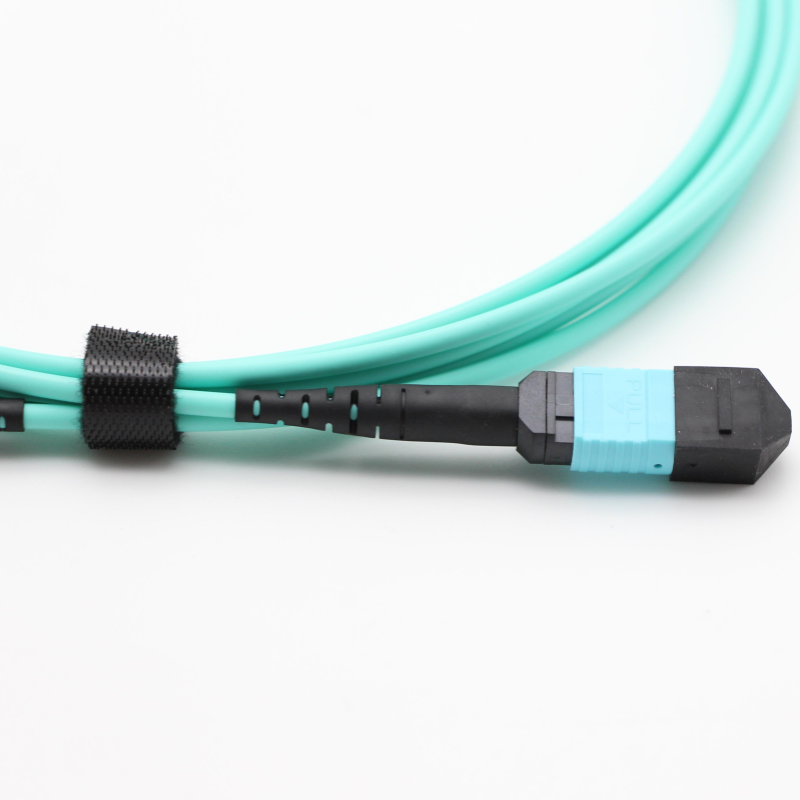

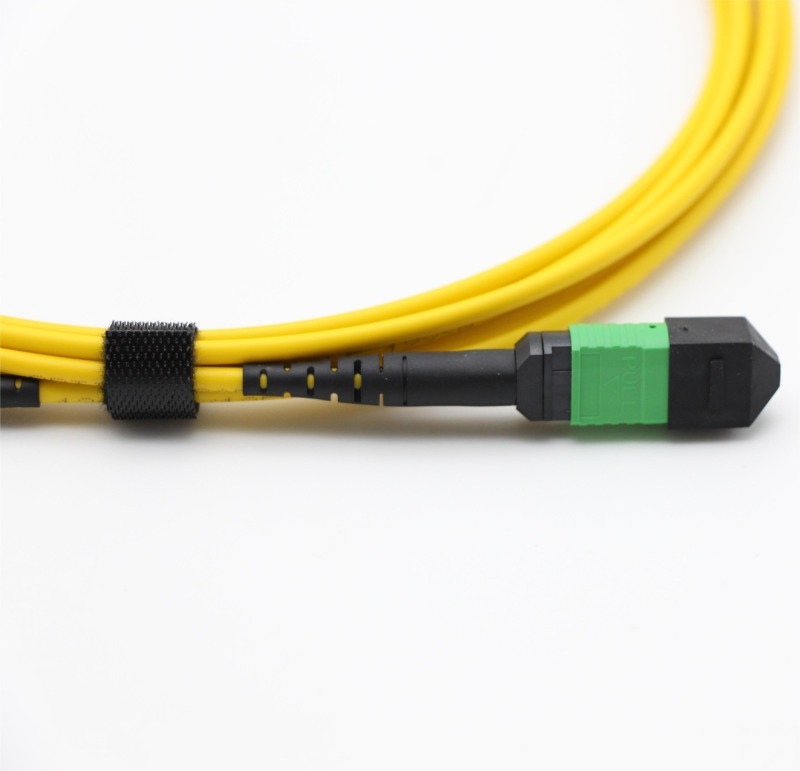

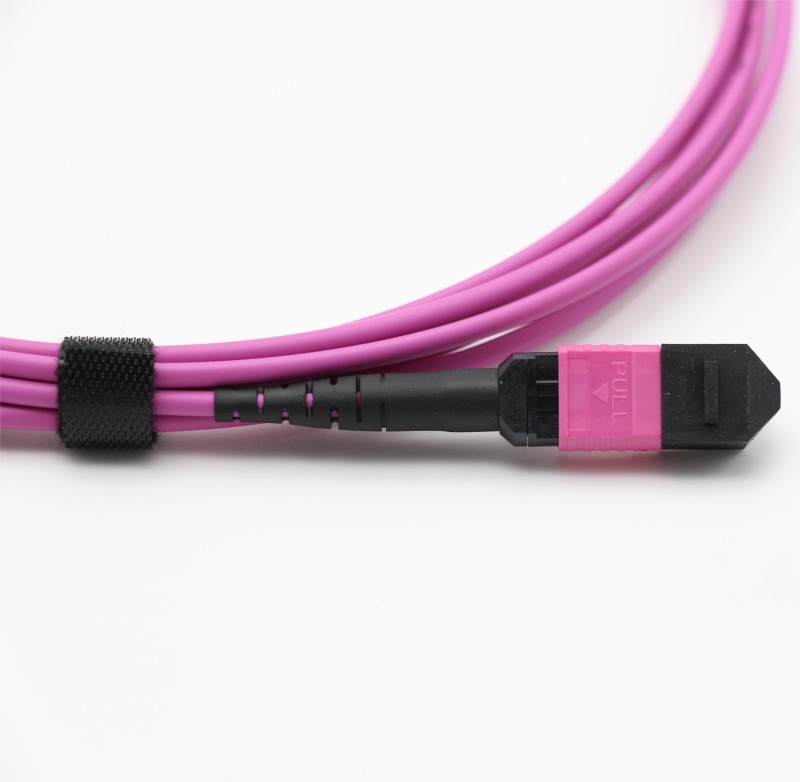

MPO-MTP Patch cord

Item No.: NH-880005
Description
Description
Product  Introduction
The MPO/MTP patch cord is a multi-fiber patch cord which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.
MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.







Features
0.9mm, 2.0mm, and 3.0mm fiber optic cable are optional
Different fiber sequences and different key configurations are optional.
Available in 8/12/24 fibers
Ribbon ,Ruggedized or fan-out cord is available
 LSZH, PVC,OFNR and OFNP rated jacket are optional.
 Meet IEC61754 , TIAFOCIS 5/604-5 , bell core GR-143 requirements
Product Parameter
Characteristic SM , MM
Connector type  FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)  0.9、2.0、3.0
Polishing grade  SM UPC MM UPC SM APC
Insertion loss  Grade B ≤0.15dB ≤0.1dB ≤0.15dB
Grade C ≤0.30dB ≤0.30dB ≤0.30dB
Return loss  ≥55dB ≥30dB ≥65dB
Interchangeability ≤0.1dB
Repeatability  ≤0.1dB
Operation temperature (℃) ﹣20°C ~ +70°C
Storage temperature (℃) ﹣40°C ~ +80°C
Applications
1. Telecommunication
2. Computer networks
3. CATV networks
4. Active device termination
5. Instrumentation


Package
