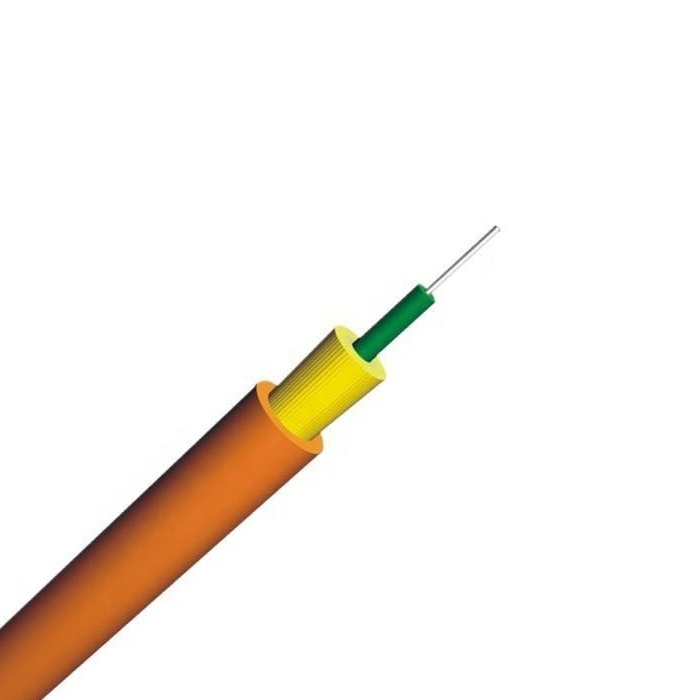

Indoor Simplex Fiber Optic Cable-GJFJV

Item No.: 00125
Description
Description
Features
•Tight buffer fiber ease of stripping
•Tight buffer fiber have excellent falme-retardant perfomance
•Aramid yarn as strength member make cable have excellent tensile strength
•The jacket anti corrosion anti-water,anti-ultraviolet radiation,flame-retardant and harmless to environment
•Flat structure ensure compact arrangement of fibers
•All dielectric structure protect it from electromagnetic influence
•Scientific design with serious processing art




Technical Parameter
1) Fiber Allocation Scheme
Fiber number Tube number Fiber per tube Fiber type
1 1 1 Single mode or Multi mode

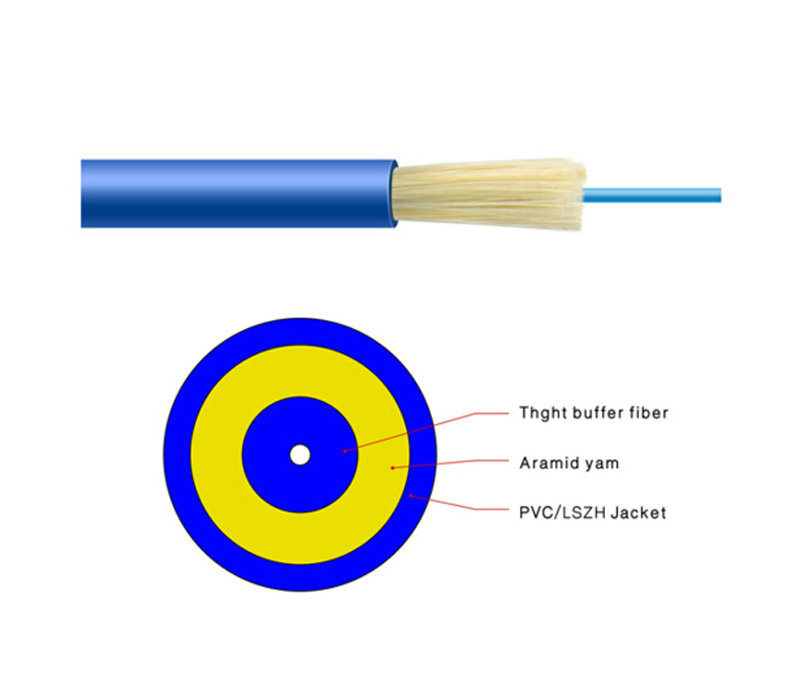

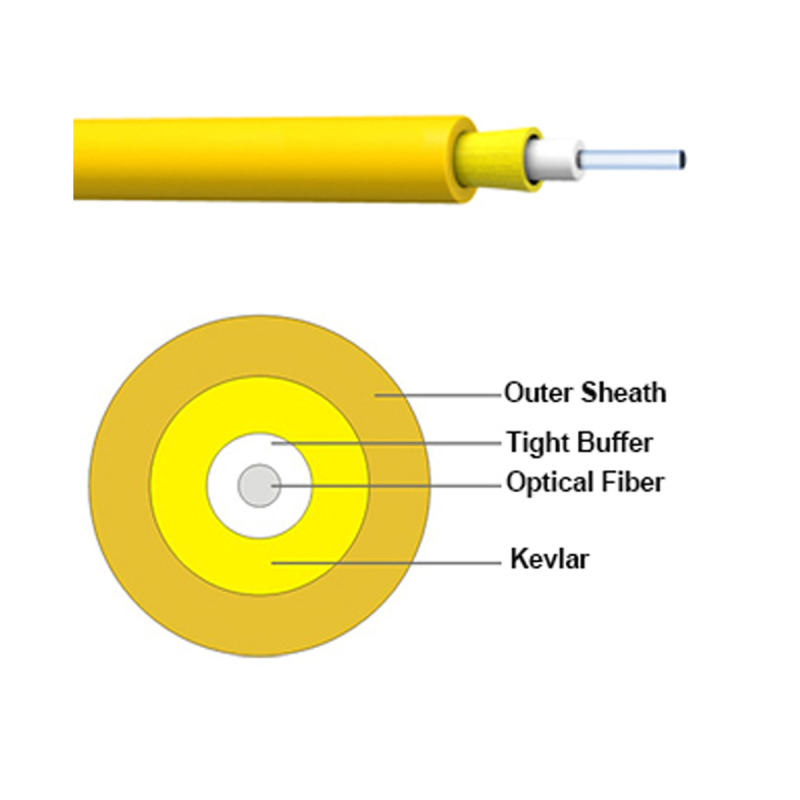

2) Cable construction details
Items Description
Fiber Counts 1 core
Strength Member Material Aramid yarn
Color Yellow
Tight Buffer Dia (mm) 0.6±0.05mm or 0.9±0.05mm
Material PVC(LSZH、Hytrel、PA or Customer required)
Color Yellow and White
Outer Jacket Material PVC (LSZH or Customer required)
Color Yellow, Aqua, Purple or Orange
Thickness(mm) ≥0.20 (Φ1.6mm)
≥0.30 ( Φ2.0mm)
≥0.40 (Φ2.8mm)
3) Cable Mechanical characteristic
Item Cable Dia Weight Allowable Tensile Strength(N) Crush Load (N/100mm)
(mm) (kg/km) Long term Short term Long term Short term
GJFJV 1.6 (±0.2) 2.6 40 80 100 500
2.0 (±0.2) 3.9 80 150 100 500
2.8 (±0.2) 5.8 150 300 100 500
Min Bending Radius(mm) Long term 10D
Short term 20D
Temperature characteristic Base on the working temperature range: Dwell time 8H / 2cycles.
The variation on attenuation:SM≤0.5 dB/km;MM≤0.3 dB/km
Hight temperature and humidity ability ≥500h,85℃/85%RH,No damage to the sheath.
Installation Temperature range -5 ~ +50℃
Operation and transport temperature -20 ~ +60℃
Requirement for Order
(1) Fiber sort: Single mode:G652D,G657A1,G657A2, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PVC、LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.
Fiber optical  Characteristic (after cable)
Fiber type Attenuation Bandwidth Effective modal bandwidth 10 Gb/s
Link Length
Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm
Typical Maximum Typical Maximum 1300nm
Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m
G652D 0.5/0.4 0.6/0.5 / / / / /
G657A1 0.5/0.4 0.6/0.5 / / / / /
G657A2 0.4/0.3 0.5/0.4 / / / / /
G657B3 0.5/0.4 0.6/0.5 / / / / /
62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / /
50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / /
OM1
50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / /
OM2
OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150
OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300
OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550


Package
