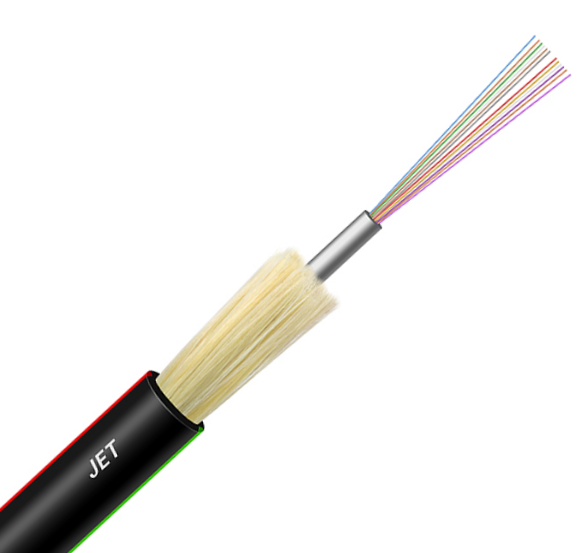

Indoor & Outdoor Distribution Cable- JET

Item No.: 00148
Description
Description
Technical Parameters
                  Cable Type                       Fiber Count                                 Cable Diameter                               Cable Weight Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/Dynamic
mm Kg/km N N/100m mm
JET 2~24 6.0  20 1000/2000 200/400 30D/15D
JET 2~24 6.5  25 1200/2500 250/500 30D/15D
JET 2~24 7.0  28 1500/3000 250/500 30D/15D
JET 2~24 7.5  30 1800/3500 250/500 30D/15D




Features
•Good mechanical and temperature performance
•Aramid reinforcing elements provide excellent tensile properties for fiber optic cables.
•Special tube filling compound ensure a critical protection of fiber
•High optical fiber assembly density, small cable diameter and light weight make it the best choice for air blowing.
•Applicable for short span aerial installation
Requirement for Order
(1) Fiber sort: Single mode:G652D,G657A1, G657A2, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3) Jacket material: PE、LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.
Fiber optical  Characteristic (after cable)
Fiber type Attenuation Bandwidth Effective modal bandwidth 10 Gb/s Link Length
Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm
Typical Maximum Typical Maximum 1300nm
Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m
G652D 0.5/0.4 0.6/0.5 / / / / /
G657A1 0.5/0.4 0.6/0.5 / / / / /
G657A2 0.4/0.3 0.5/0.4 / / / / /
G657B3 0.5/0.4 0.6/0.5 / / / / /
62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / /
50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / /
OM1
50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / /
OM2
OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150
OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300
OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550

Package
