| Technical Parameter |
|
|
|
|
| Optical Fast Connector Optical Performance |
Unit( dB) |
| (Reference to China Standard Q/CT 2299-2010-6.1) |
| Code |
Test Item |
Mechanical Q/CT 2299-2010-Chapter6.1 |
Fusion Splicer Type |
| YD/T 2341.2-2011-Chapter 4.7 |
| Average Value |
Maximum Value |
Average Value |
Maximum Value |
| a |

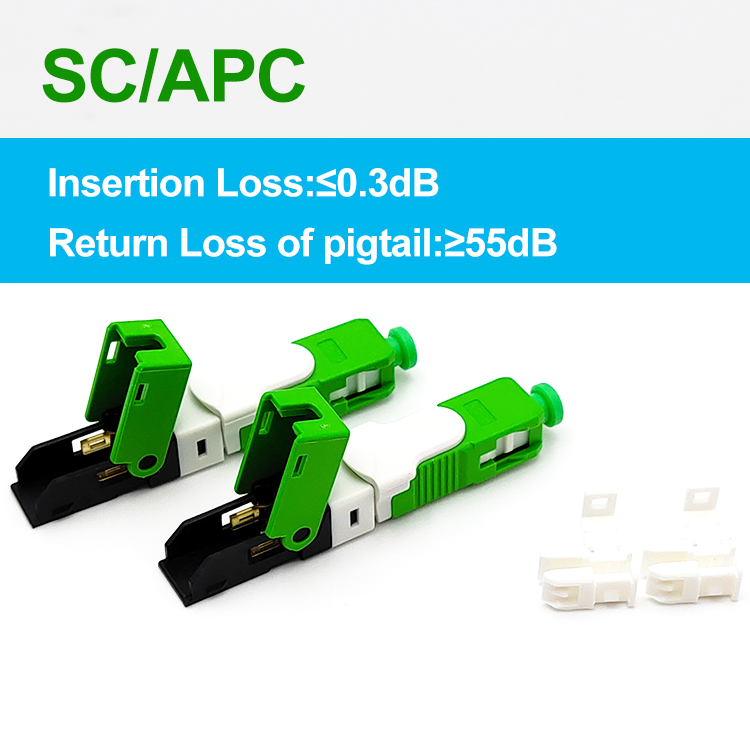

Insertion Loss |
≤0.3 |
Tested with standard plugs and adapters：≤0.5 |
≤0.25 |
Tested with standard plugs and adapters：≤0.4 |
| Test with any plug and adapter：≤0.7 |
Test with any plug and adapter：≤0.7 |
| b |
Return Loss |
≥40（UPC）；≥55（APC） |
≥50（UPC）；≥60（APC） |
| Mark1： IL and RL Test at 1310nm. If need test 1550nm, Please tell us first. |
| Mark2：IL and RL average and Maximum vale make as customer’s requirement. |
| Mark3：Return Loss can customized UPC standard -45~-50dB；APC Standard -55~-60dB |
|
|
|
|
|
|
|
| Application |
|
|
| Applied to open FTTH fiber terminal |
|
|
| Used in closure boxes, cabinets, teminal boxes, etc. |
|
|
| Recovery and maintenance in fiber breakage and other accidents |
|
|
| LAN, WAN, data and video transmission |
|
|
| Construction and maintenance of fiber access for end users |
|
| Fiber entry for mobile base stations |
|
