Features
•Good mechanical and temperature performance

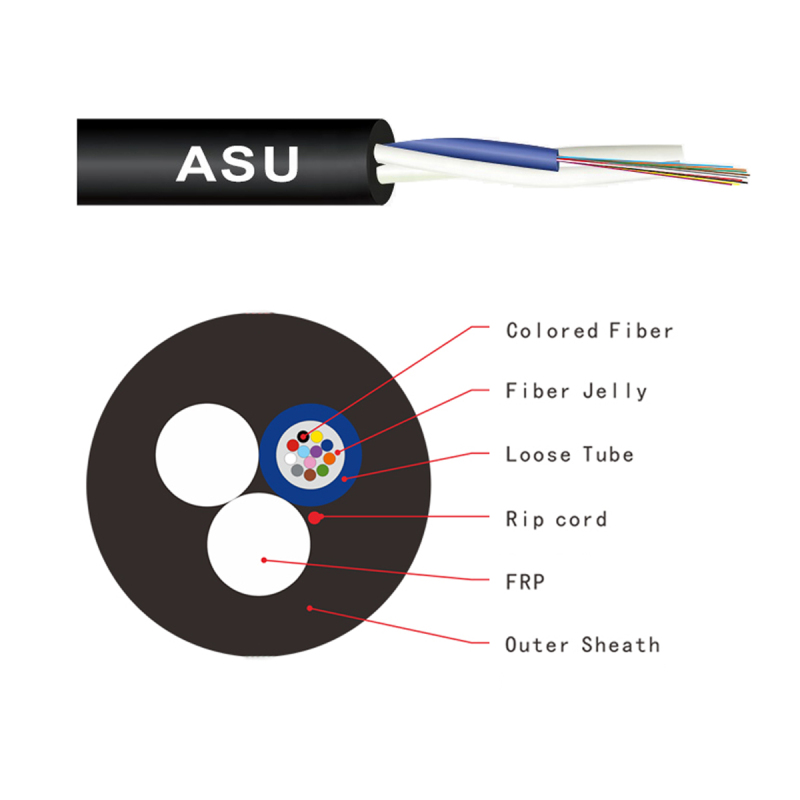

•Two FRP as strength member to provide good tensile performance
•Special tube filling compound ensure a critical protection of fiber
•Applicable for short span aerial and duct installation
•Gel Filled or gel free , good waterproof performance
| Technical Parameters |
|
|
|
|
|
| Cable Core |
Unit |
2F |
4F |
6F |
8F |
10F |
12F |
| No. Of Tubes |
|
1 |
1 |
1 |
1 |
1 |
1 |
| No. Of fibers |
core |
2 |
4 |
6 |
9 |
10 |
12 |
| Fiber Counts in tube |
core |
2 |
4 |
6 |
9 |
10 |
12 |
| Cable Diameter |
mm |
6.6±0.5 |
6.8±0.5 |
| Cable Weight |
Kg/km |
40±10 |
45±10 |
| Allowable tensile Strength |
N |
Span=80，1.5*P |
| Allowable crush resistance |
N |
1000N |
| Operation temperature |
℃ |
-20℃ to +65℃ |
|
|
|
|
|
|
|
|
| Requirement for Order |
|
| (1) Fiber sort: Single mode:G652D,G657A1, G657A2, Multi mode:OM1,OM2,OM3,OM4. |
|
| (2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc. |
|
| (3) Jacket material: PE、LSZH ( can be required). |
|
| (4) The fiber and tube color: according to stranded color, can be required. |
|
| (5) Length of cable: generally is 2KM/drum, can be required. |
|
| (6) Other requirement: can be negotiated. |
|
|
|
|
|
|
|
|
|
| Fiber optical Characteristic (after cable) |
| Fiber type |
Attenuation |
Bandwidth |
Effective modal bandwidth |
10 Gb/s Link Length |
| Conditions |
1310/1550nm |
850/1300nm |
850/ |
850nm |
850nm |
| Typical |
Maximum |
Typical |
Maximum |
1300nm |
| Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHz.km |
MHz.km |
m |
| G652D |
0.5/0.4 |
0.6/0.5 |
/ |
/ |
/ |
/ |
/ |
| G657A1 |
0.5/0.4 |
0.6/0.5 |
/ |
/ |
/ |
/ |
/ |
| G657A2 |
0.4/0.3 |
0.5/0.4 |
/ |
/ |
/ |
/ |
/ |
| G657B3 |
0.5/0.4 |
0.6/0.5 |
/ |
/ |
/ |
/ |
/ |
| 62.5/125 |
/ |
/ |
3.5/1.0 |
3.5/1.5 |
≥160/500 |
/ |
/ |
| 50/125/ |
/ |
/ |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
/ |
/ |
| OM1 |
| 50/125/ |
/ |
/ |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
/ |
/ |
| OM2 |
| OM3-150 |
/ |
/ |
3.0/1.0 |
3.5/1.5 |
≥700/500 |
≥950 |
150 |
| OM3-300 |
/ |
/ |
2.5/0.8 |
3.0/1.0 |
≥1500/500 |
≥2000 |
300 |
| OM4-550 |
/ |
/ |
2.5/0.8 |
3.0/1.0 |
≥3500/500 |
≥4700 |
550 |
Package
